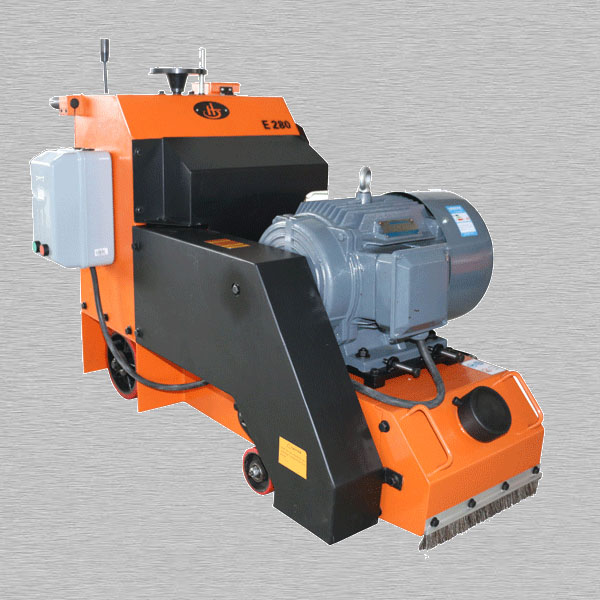

JHE-280E
Electric
11KW
11KW Siemens Motor
280mm(11)”
0-15mm(3/5)”
| Net Weight: | |
|---|---|
| Cutter Type: | |
| No. of Cutters: | |
| Belt: | |
China does not lack of scarifier supplier, but lack of quality supplier. Fortunately we are the good one.
JHE-280 concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results. A tripled drum bearing and hardened cutter shafts make it particularly reliable.

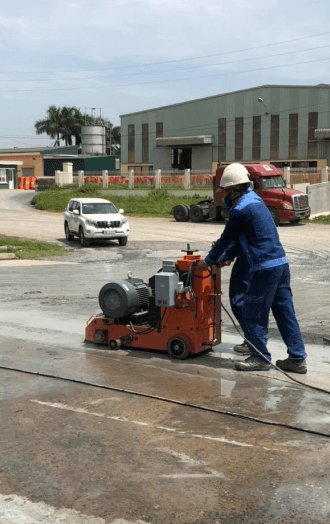

This type Auto-working with hydraulic device scarifying machine(JHE-280) is used in a variety of applications:Clean surface coatings, paints, and road markings,rough concrete or asphalt for new layer, clean out epoxy, and creating a non slip surface.
 * Hydraulic removal depth adjustment makes operation easier * With vacuum ports connecting on JHV vacuum cleaner series * Thick polyurethane wheels can serve long time on the hard job site * With strong power, efficiently scarify large areas * Easy loading Drum set allow you to change it in minutes, save your time * Using multiple belt, prolong service life * Precision machined drum assembly makes the scarifier stronger and prolong service life |
| Model | JHE-280 | JHE-280K | JHE-280E |
| Engine | Honda 25HP | KOHLER 25HP | Siemens Electrical 11KW |
| No. of shaft(piece) | 6 | 6 | 6 |
| No. of cutter(piece) | 110 | 110 | 110 |
| Working width(mm/") | 280/11 | 280/11 | 280/11 |
| Working depth(mm/") | 0-15/(0-3/5) | 0-15/(0-3/5) | 0-15/(0-3/5) |
| Drum Rotation | Up Rotary | Up Rotary | Up Rotary |
| Movement Type | Self Proelled | Self Proelled | Self Proelled |
| Speed(m/h) | 40-70 | 40-70 | 40-70 |
| Size(mm) | 1300*640*930 | 1300*640*930 | 1300*640*930 |
| Net Weight(kg/lb) | 306/675 | 306/675 | 339/747 |
China does not lack of scarifier supplier, but lack of quality supplier. Fortunately we are the good one.
JHE-280 concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results. A tripled drum bearing and hardened cutter shafts make it particularly reliable.
This type Auto-working with hydraulic device scarifying machine(JHE-280) is used in a variety of applications:Clean surface coatings, paints, and road markings,rough concrete or asphalt for new layer, clean out epoxy, and creating a non slip surface.
* Hydraulic removal depth adjustment makes operation easier * With vacuum ports connecting on JHV vacuum cleaner series * Thick polyurethane wheels can serve long time on the hard job site * With strong power, efficiently scarify large areas * Easy loading Drum set allow you to change it in minutes, save your time * Using multiple belt, prolong service life * Precision machined drum assembly makes the scarifier stronger and prolong service life |
| Model | JHE-280 | JHE-280K | JHE-280E |
| Engine | Honda 25HP | KOHLER 25HP | Siemens Electrical 11KW |
| No. of shaft(piece) | 6 | 6 | 6 |
| No. of cutter(piece) | 110 | 110 | 110 |
| Working width(mm/") | 280/11 | 280/11 | 280/11 |
| Working depth(mm/") | 0-15/(0-3/5) | 0-15/(0-3/5) | 0-15/(0-3/5) |
| Drum Rotation | Up Rotary | Up Rotary | Up Rotary |
| Movement Type | Self Proelled | Self Proelled | Self Proelled |
| Speed(m/h) | 40-70 | 40-70 | 40-70 |
| Size(mm) | 1300*640*930 | 1300*640*930 | 1300*640*930 |
| Net Weight(kg/lb) | 306/675 | 306/675 | 339/747 |
