JHV-014
JIEHE
3.6KW
Availability: | |
---|---|

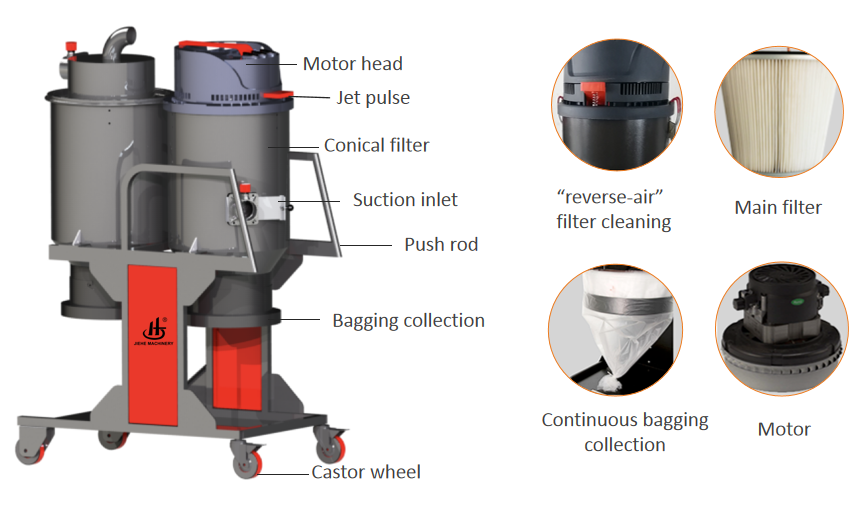

JHV-014B is an effective industrial dust extractor to match the scarifier machines, concrete cutter ect. Ideal for heavy-duty work and exacting demands on dust extraction. JHV-014B is a compact vertical design, with the motors installed on top.
• Equipped with 3 industry grade motors. A plenty of power to meet a wide range of requirements.
• The unique double container design makes the collection capacity larger and the filtering effect better.
• The standard vacuum pressure gauge can monitor the clogging state of the filter unit in real time.
• Equipped with a imported conical filter cartridge with an accuracy of 1um.
• With its unique “reverse-air” jet-pulse filter cleaning system,ensures high continuous airflow and efficient cleaning of the conical main filter without opening the machine.
• The collection unit is composed of a continuous bagging system to ensure fast and dust-free dust collection and bag change, convenient and safe operation.
Model | JHV-014B | |
Voltage(V/KW) | 220 /3.6 | 110 /2.4 |
Vacuum(kPa) | 27 | 23 |
Airflow(cfm) | 318 | 285 |
Filter area(cm²/sf) | 30000 /32.2 | |
Container | 25+25(continue bagging system) | |
Sound(db) | 74 | 72 |
Size(mm/”) | 600*1160*1420/(23*46*56) | |
Weight(kg/lb) | 85/220 |
JHV-014B is an effective industrial dust extractor to match the scarifier machines, concrete cutter ect. Ideal for heavy-duty work and exacting demands on dust extraction. JHV-014B is a compact vertical design, with the motors installed on top.
• Equipped with 3 industry grade motors. A plenty of power to meet a wide range of requirements.
• The unique double container design makes the collection capacity larger and the filtering effect better.
• The standard vacuum pressure gauge can monitor the clogging state of the filter unit in real time.
• Equipped with a imported conical filter cartridge with an accuracy of 1um.
• With its unique “reverse-air” jet-pulse filter cleaning system,ensures high continuous airflow and efficient cleaning of the conical main filter without opening the machine.
• The collection unit is composed of a continuous bagging system to ensure fast and dust-free dust collection and bag change, convenient and safe operation.
Model | JHV-014B | |
Voltage(V/KW) | 220 /3.6 | 110 /2.4 |
Vacuum(kPa) | 27 | 23 |
Airflow(cfm) | 318 | 285 |
Filter area(cm²/sf) | 30000 /32.2 | |
Container | 25+25(continue bagging system) | |
Sound(db) | 74 | 72 |
Size(mm/”) | 600*1160*1420/(23*46*56) | |
Weight(kg/lb) | 85/220 |
