JHK-300
13HP
KOHLER CH680/ Honda GX690
| Thickness of Blade: | |
|---|---|
| Qty of Blade: | |
| Grooving depth: | |
| Grooving width: | |

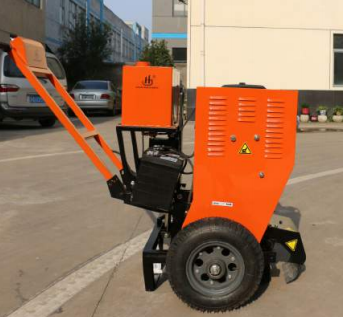

Routing and Sealing pavement cracks with a standard recessed Band-Aid can increase sealant life by over two times that of non-routed and sealed cracks. There are two different model of routers for your choice. The JIEHE Pavement Router has been tested in the industry since 1999. Matching with crack sealing machine to widen and clear the crack of cement pavement and asphalt pavement for reach the requirement of road crack repair
|
| Model | JHK-300 |
| Engine Model | KOHLER CH680 |

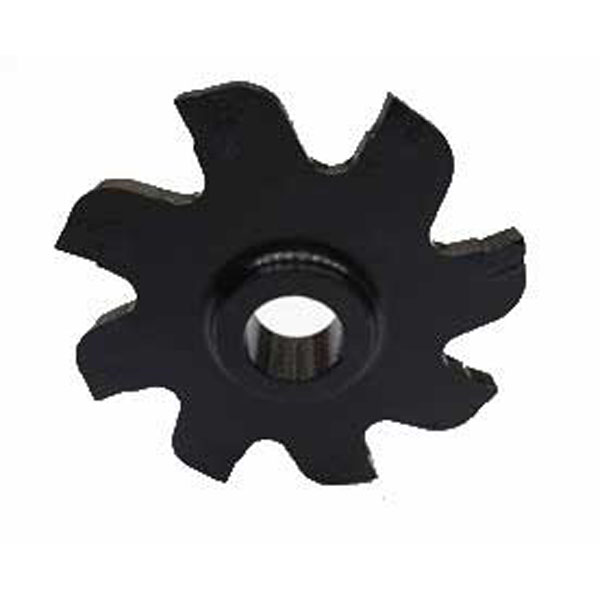

| Diameter of Blade(mm) | 120 |
| Thickness of Blade(mm) | 10 |
| Rotating Speed | 3600r/min |
| Grooving Depth(mm) | 0-40 |
| Grooving Width(mm) | 10-25 |
| Cutting Speed | 5-10m/min |
| Dimension(mm) | 1760*790*1100 |
| Shipping Size(mm) | 1780*800*1120 |
| Weight(kg) | 260 |
| Shipping Weight(kg) | 280 |
| Operation Method | Electric Start |
 1. Using diamond blade 2. Using large volume fuel tank to ensure long-time working 3. Grooving width and depth can be adjustable 4. Adopting imported gasoline engine; equipped with triple heavy air filters,applicable in adverse environments5.Using imported electric spiral riser; reliable in work, stable in performance. 6. Additional depth indication device and depth limit-stop adjusting device make the operation friendlier. 7. Cutting blades manufactured with high-quality materials and special technique guarantee long service life. 8. Crack tracking device guarantees cutting tools from improper work on irregular cracks. 9. Double protections prevent gravels from flying out; it’s safe and environmental-friendly. |
