Large Micro Trencher

  • JHK-600
  • WP4T120E203
  • 30-50(mm)
  • 300-500(mm)

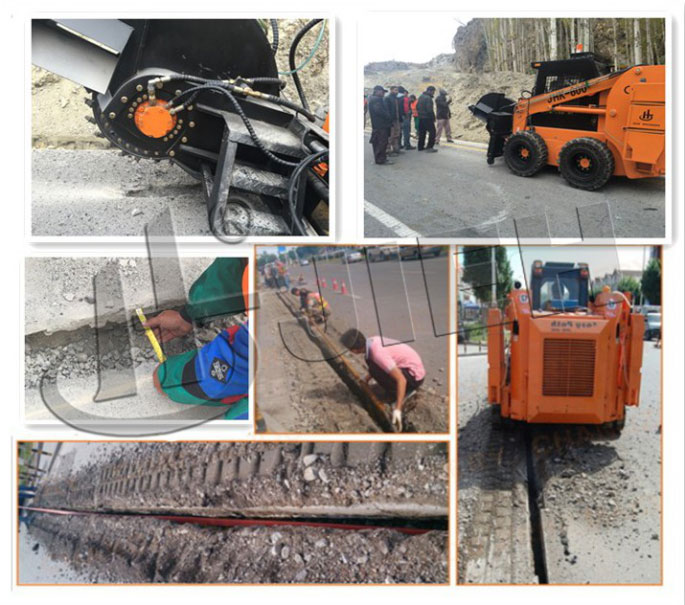

WHERE TO USE:

1、road grooving project

2、Pipeline construction and maintenance

3、The grooving and lay of wire and cable project

4、micro-trencher project

5、trencher of paddy land

6、other fields.

WHY CHOOSE US :

Lowest operation cost

Highest working efficiency. Within 50mm width, the slotting jobs doesn’t impact the pavement structure.

Lowest impact on the natural environment. For example: Control the mining earthwork quantity, backfill earthwork quantity and low pollutant emission (Very low energy consumption)

Lowest impact on the social environment. For example: Lowest impact on the urban road traffic, effectively reduce the noise emissions.

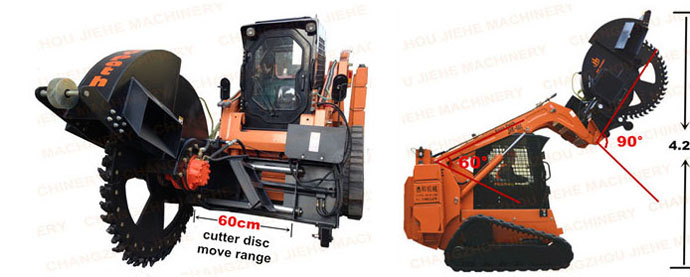

JHK-600 has advantageous construct capacity.It can even be adapted to concrete and asphalt road edge construction. The cutter disc in the front can be left-right move between 60cm.The straight-bar can up-down move for 60° and cuutter  disc up-down move for above 90°.The highest distance of cutter disc from the land is about 4.2m.

pimg01

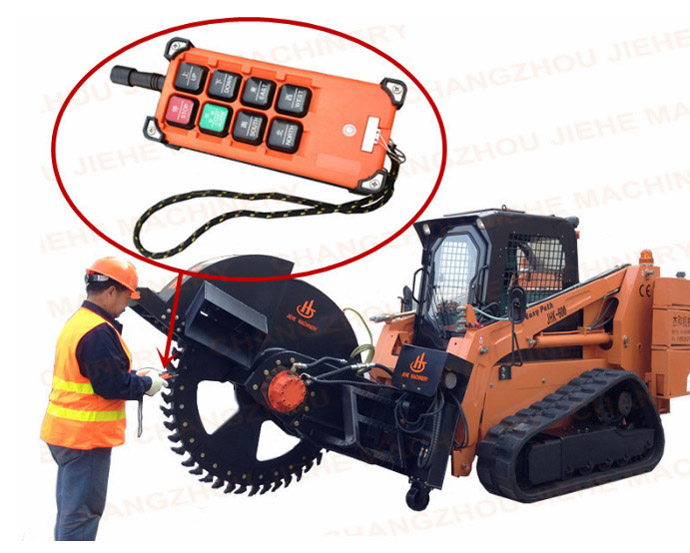

Operator can operate the machine in the cab or use the remote control away. remote control can be used within diameter 100m.

1.Germary Deutz WP4T120E203 150HP/92KW engine provides super power.

2.Self-developed special cutter disc and cutter, long service life and high work efficiency.

3.Two moving ways:crawler or wheel

4. Cutting depth and width can be customized in order to adjust for different working conditions,we wiull try our best to meet customer requirements.
