900mm/35" Hydraulic Saws

  • JHD-900
  • DIESEL
  • 38HP
  • LOMBARDINI 11LD626-3
  • 0-375mm(15)”
Movement Type:
Depth Control:
Net Weight:
Blade Guard Type:

JIEHE has variety Walk Behind Saws and Self-propelled Saws.We provide from 0 to 900mm(16“) Cutting depth to meet your different job requirements.


WHY CHOOSE US :


1. A variety of concrete,asphalt pavement,plaza stretching cutting

2. Concrete,asphalt pavement repairs,cutting

3. Blade hydraulic pump for propulsion system, having automatic lift function, reducing the operational burden

4. Independent flow valve for control depth of cut, adjusting freely

5. With the unique spraying system designed with water-tank,cooling water is sprayed to the blade so as to

6. Lubricate and cool the blades, enhances the service life of the blades

SPECIFICATION :
Model Number JHD-900
Power  38HP(30.9KW)
Power Source Diesel
Place of engine Italy
Moving Method Self propelled
Output RPM 2000RPM
Diamond Blade Max 900mm(35 in)
Cutting Depth 375mm
Diameter Of Saw Blades 800/900mm(31*35in)
Running Speed 150m/h(492ft/h)
Fuel Capacity 20L(5.3 us gal)
Engine cooling Air
Weight 686kg
Warranty 12 Months
Place of Origin Jiangsu, China (Mainland)
Cylinders 3
Motor/engine manufacturer LOMBARDINI 11LD626-3
Engine cooling Air
Number of strokes 4-stroke
Shipping Dimensions 1700*980*1200MM
Shipping Dimensions of Go Cart 940*590*970mm(37*23*38in)


FEEDBACK :

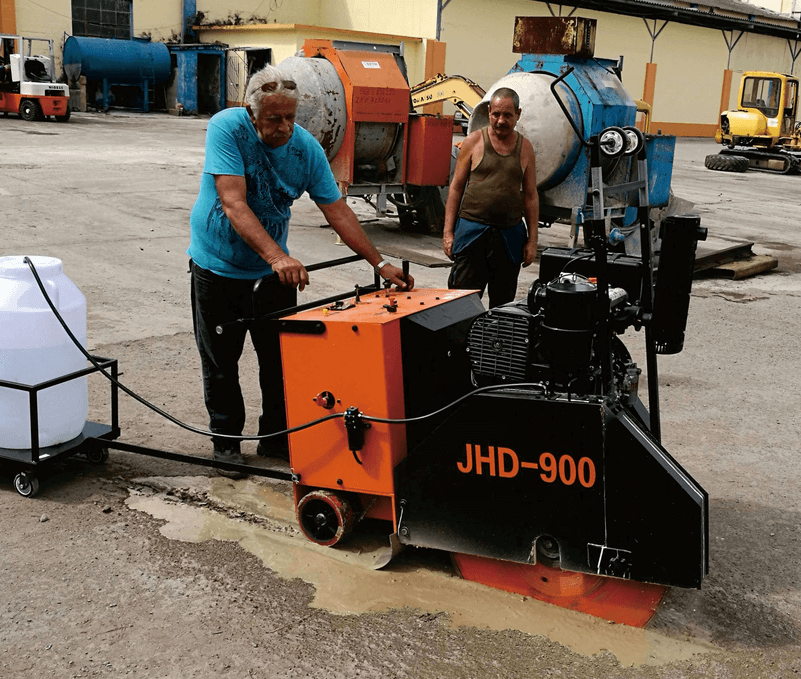

Large concrete cutter 5
