JHZA-25
JIEHE
25HP
Japanese Original Kubota
Standard attachment: | |
---|---|
Movement: | |
Availability: | |
JIEHE mini skid steer loader allows you to pair it with many attachments you may already own and use, while one loader can for various function. JIEHE mini-skid steer loader can attach different attachments, such as bucket, excavator, auger, trencher, hydraulic breaker, pallet forks, tiller, 4 in 1 bucket, wood chipper, root grapple and so on, to ensure that the work you might do has an attachment to complete.
Why choose us?
1) Japanese original Kubota ,diesel engine 25HP
2) Italian Hydrocontrol valve
3) American Permco pump
4) American WHITE Motor
5) Multi-function and wide applications
6) Double oil tanks designed for backup
7) Simple and clear operation system
8) Quick Hitch system
9) Track replacement fast and flexible ,reduce damage to the ground.
10) Easy to repair, the observation and the operation windows are opened on both sides of vertical plate.
JIEHE mini skid steer loader allows you to pair it with many attachments you may already own and use, while one loader can for various function. JIEHE mini-skid steer loader can attach different attachments, such as bucket, excavator, auger, trencher, hydraulic breaker, pallet forks, tiller, 4 in 1 bucket, wood chipper, root grapple and so on, to ensure that the work you might do has an attachment to complete.
Why choose us?
1) Japanese original Kubota ,diesel engine 25HP
2) Italian Hydrocontrol valve
3) American Permco pump
4) American WHITE Motor
5) Multi-function and wide applications
6) Double oil tanks designed for backup
7) Simple and clear operation system
8) Quick Hitch system
9) Track replacement fast and flexible ,reduce damage to the ground.
10) Easy to repair, the observation and the operation windows are opened on both sides of vertical plate.
With Bucket:
Bucket Dimension: 48"
Bucket Capacity :0.14m³
Weight: 115kg(253lbs)
With Auger:
Auger Diameter: ∅200-∅600mm (∅8-∅24")
Auger Depth: 1-1000mm(1-39")
Auger Weight: 134-181kg(295-399lbs)

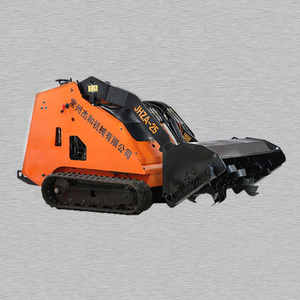

With Tiller:
Working Width: 1000mm (39")
Working Depth: 60-150mm(2.4-6")
Blade Numbers: 28Pieces
Weight: 209kg(461lbs)
Size(L*W*H):1200*680*520(MM)(47*27*20")
With Trencher:
Working Width: 155mm (6")
Working Depth: 900mm(35")
Weight: 180kg(396.8lbs)
Size(L*W*H):1527*1010*895(MM)(60*40*35")
With Bucket:
Bucket Dimension: 48"
Bucket Capacity :0.14m³
Weight: 115kg(253lbs)
With Auger:
Auger Diameter: ∅200-∅600mm (∅8-∅24")
Auger Depth: 1-1000mm(1-39")
Auger Weight: 134-181kg(295-399lbs)
With Tiller:
Working Width: 1000mm (39")
Working Depth: 60-150mm(2.4-6")
Blade Numbers: 28Pieces
Weight: 209kg(461lbs)
Size(L*W*H):1200*680*520(MM)(47*27*20")
With Trencher:
Working Width: 155mm (6")
Working Depth: 900mm(35")
Weight: 180kg(396.8lbs)
Size(L*W*H):1527*1010*895(MM)(60*40*35")

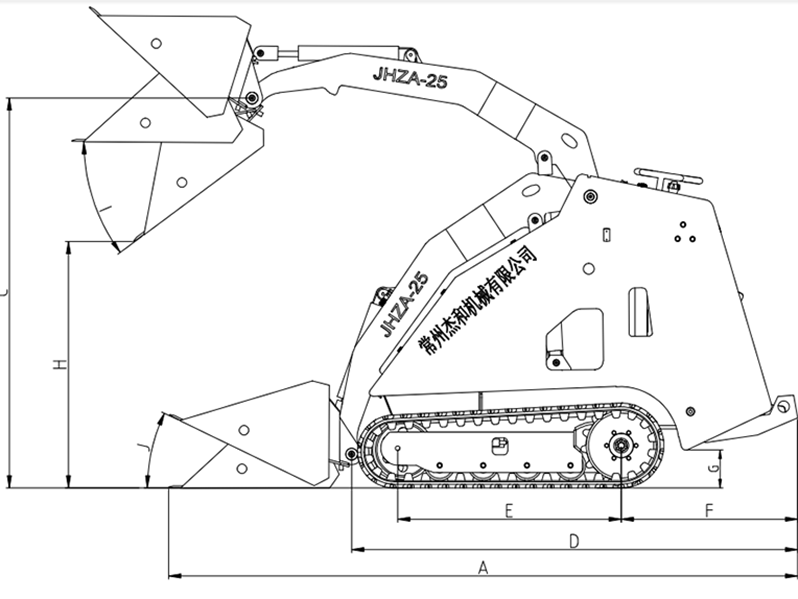

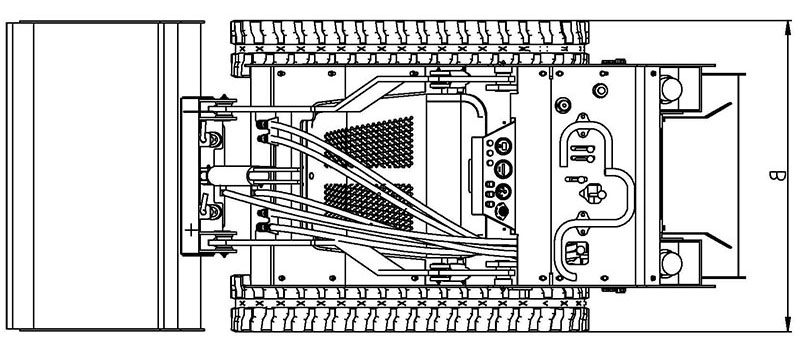

JHZA-25 | |||
Item | Main description | Metric | Inch |
A | Length | 2588mm | 102inch |
B | Height | 1096mm | 43inch |
C | Maximum hinged height | 1905mm | 75inch |
D | Length without bucket | 1835mm | 72inch |
E | Distance between wheels | 920mm | 36inch |
F | Radius of rear suspension turn | 726mm | 28inch |
G | Distance to the ground | 170mm | 7inch |
H | Unloading height | 1015mm | 40inch |
I | Maximum high unloading angle | 37° | 37° |
J | Bucket angle in the air | 26° | 26° |
Weight without the attachment | 1038kg | 2288lb |
Hydraulic system | |
Flow of hydraulic system | 54.8L/MIN |
Max pressure of the walking mechanism | 21MPA |
Rated pressure of the working device | 17.5MPA |
Flow of auxiliary systems | 49L/MIN |
Hydraulic tank volume | 52L |
Connector mode | Flat sealed quick connector |
Engine | |
Emission Standards | EU Stage III / US EPA4 |
Manufacturer | Japanese Original Kubota-D1105-E4B |
Fuel / Cooling | Diesel/Water cooling |
Cylinders | 3 |
Power | 18.5KW/25.2HP&3000rpm/min |
Displacement | 1.123L |
Oil tank volume | 45L |
Air filter | Heavy duty two-stage safety air filter |
JHZA-25 | |||
Item | Main description | Metric | Inch |
A | Length | 2588mm | 102inch |
B | Height | 1096mm | 43inch |
C | Maximum hinged height | 1905mm | 75inch |
D | Length without bucket | 1835mm | 72inch |
E | Distance between wheels | 920mm | 36inch |
F | Radius of rear suspension turn | 726mm | 28inch |
G | Distance to the ground | 170mm | 7inch |
H | Unloading height | 1015mm | 40inch |
I | Maximum high unloading angle | 37° | 37° |
J | Bucket angle in the air | 26° | 26° |
Weight without the attachment | 1038kg | 2288lb |
Hydraulic system | |
Flow of hydraulic system | 54.8L/MIN |
Max pressure of the walking mechanism | 21MPA |
Rated pressure of the working device | 17.5MPA |
Flow of auxiliary systems | 49L/MIN |
Hydraulic tank volume | 52L |
Connector mode | Flat sealed quick connector |
Engine | |
Emission Standards | EU Stage III / US EPA4 |
Manufacturer | Japanese Original Kubota-D1105-E4B |
Fuel / Cooling | Diesel/Water cooling |
Cylinders | 3 |
Power | 18.5KW/25.2HP&3000rpm/min |
Displacement | 1.123L |
Oil tank volume | 45L |
Air filter | Heavy duty two-stage safety air filter |
